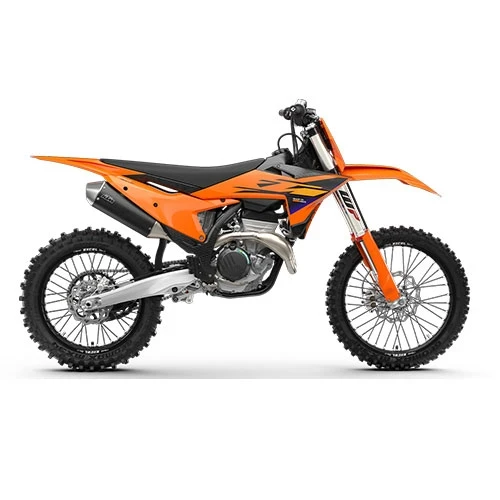

KTM 350 SX-F 2026

KTM 350 SX-F 2026

The KTM 350 SX-F delivers the perfect balance of power and agility. A 4-stroke weapon built for motocross dominance.

Engine

• ⚙️ Type: 1-cylinder, 4-stroke
• 🔧 Displacement: 349.7 cc
• 🔄 Gearbox: 5-speed
• ⛽ Fuel System: KEIHIN EFI, 44mm throttle body
• 💻 EMS: KEIHIN EMS
• 🔧 Clutch: DS multi-disc wet clutch, Brembo hydraulic
• Primary Drive Ratio: 24:72

Chassis

• 🏏 Frame: 25CrMo4 steel central double cradle
• Rear Subframe: Aluminum-reinforced polyamide
• 🛑 Front Brake: Disc
• 🛑 Rear Brake: Disc
• Chain: 520 non-sealed

Suspension

• Front Fork: WP XACT-USD AER, Ø48mm
• Rear Shock: WP XACT with linkage
• Front Travel: 310 mm
• Rear Travel: 300 mm
• Adjustments: High/low speed compression & rebound

Dimensions & Weight

• Seat Height: 958 mm
• Ground Clearance: 343 mm
• Tank Capacity: 7.2 L
• Weight (dry): 102.4 kg
